Tannus Armour Tire Liners

Tannus Armour Tire Liners

$83.00
$83.00
Puncture ResistantPuncture Resistant
Ebike CompatibleE-Bike Compatible
Run Flat CapableRun-Flat Capable

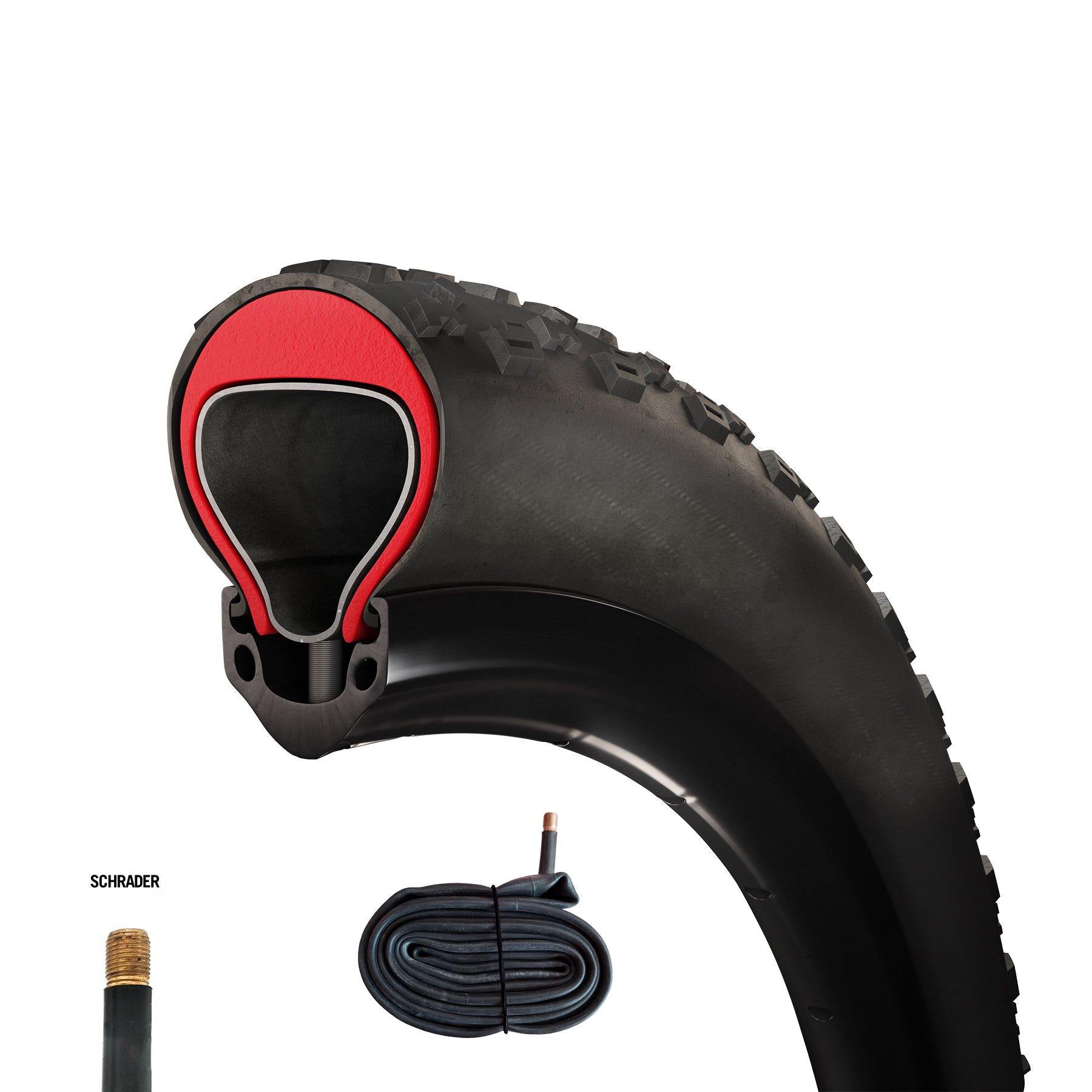

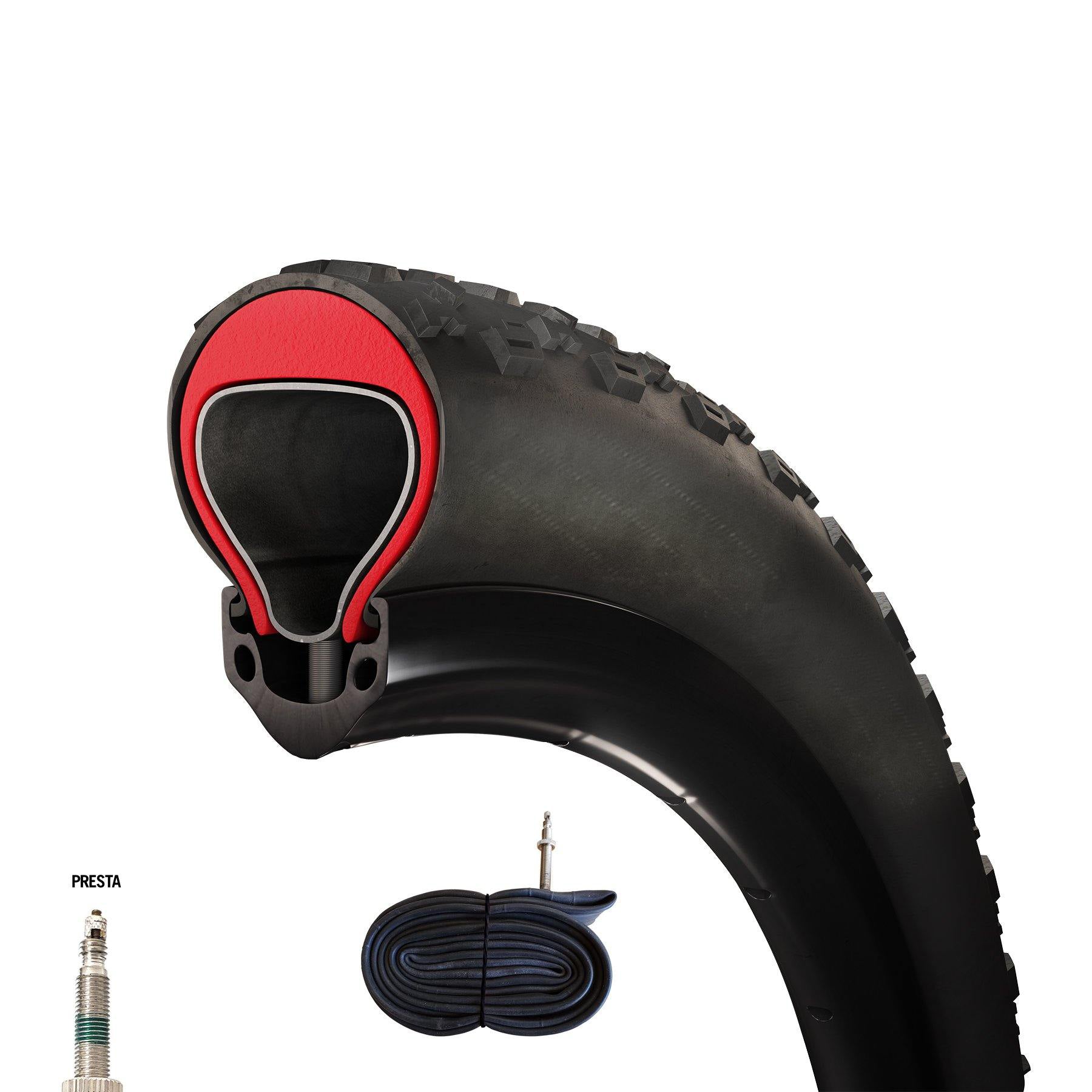

About Tannus Armour

Tannus Armour protects your tube against 90% of common bike flats using 15mm of multi-cell foam. Say goodbye to pinch and puncture flats.

Tannus Size Chart

TIRE SIZE RANGE ARMOUR SIZE RECOMMENDED TUBE SIZE GRAMS
20 x 1.75 to 20 x 1.95 20 x 1.75-1.95 20 x 1.0 to 20 x 1.5 190
20 x 1.95 to 20 x 2.5 20 x 1.95-2.5 20 x 1.5 to 20 x 1.95 220
20 x 3.0 to 20 x 4.0 20 x 3.0-4.0 20 x 2.5 to 20 x 3.0 380
20 x 4.1 to 20 x 4.8 20 x 4.1-4.8 20 x 3.5 to 20 x 4.0 390
24 x 1.95 to 24 x 2.5 24 x 1.95-2.5 24 x 1.5-1.95 270
24 x 3.0 to 24 x 4.0 24 x 3.0-4.0 24 x 2.5 to 24 x 3.0 480
26 x 1.6 to 26 x 1.9 26 x 1.6-1.9 26 x 1.1 to 26 x 1.5 260
26 x 1.95 to 26 x 2.5 26 x 1.95-2.5 26 x 1.5 to 26 x 1.95 300
26 x 2.6 to 26 x 3.0 26 x 2.6-3.0 26 x 1.9 to 26 x 2.3 330
26 x 4.0 to 26 x 4.8 26 x 4.0-4.8 26 x 3.0 to 26 x 4.0 550
27.5 x 1.95 to 27.5 x 2.5 27.5 x 1.95-2.5 27.5 x 1.5 to 27.5 x 1.95 310
27.5 x 2.6 to 27.5 x 3.0 27.5 x 2.6-3.0 27.5 x 1.9 to 27.5 x 2.3 330
29 x 1.95 to 29 x 2.5 29 x 1.95-2.5 29 x 1.5 to 29 x 1.95 320
29+ x 2.6 to 29+ x 3.0 29+ x 2.6-3.0 29 x 1.9 to 29 x 2.3 350
700 x 28 to 700 x 34 700 x 28-34 700 x 18 to 700 x 23 230
700 x 35 to 700 x 40 700 x 35-40 700 x 23 to 700 x 28 230
700 x 42 to 700 x 47 700 x 42-47 700 x 28 to 700 x 32 290

Features

Puncture Protection

Up to 15mm of protection at it's thickest point.

E-Bike Optimized

Our compound can take the torque and the thorns.

Run-Flat Technology

Ride even if you get a flat. Does not include fat sizes.

Easier Installation

Installs like a tube and uses no special tools.
Responsive Layout

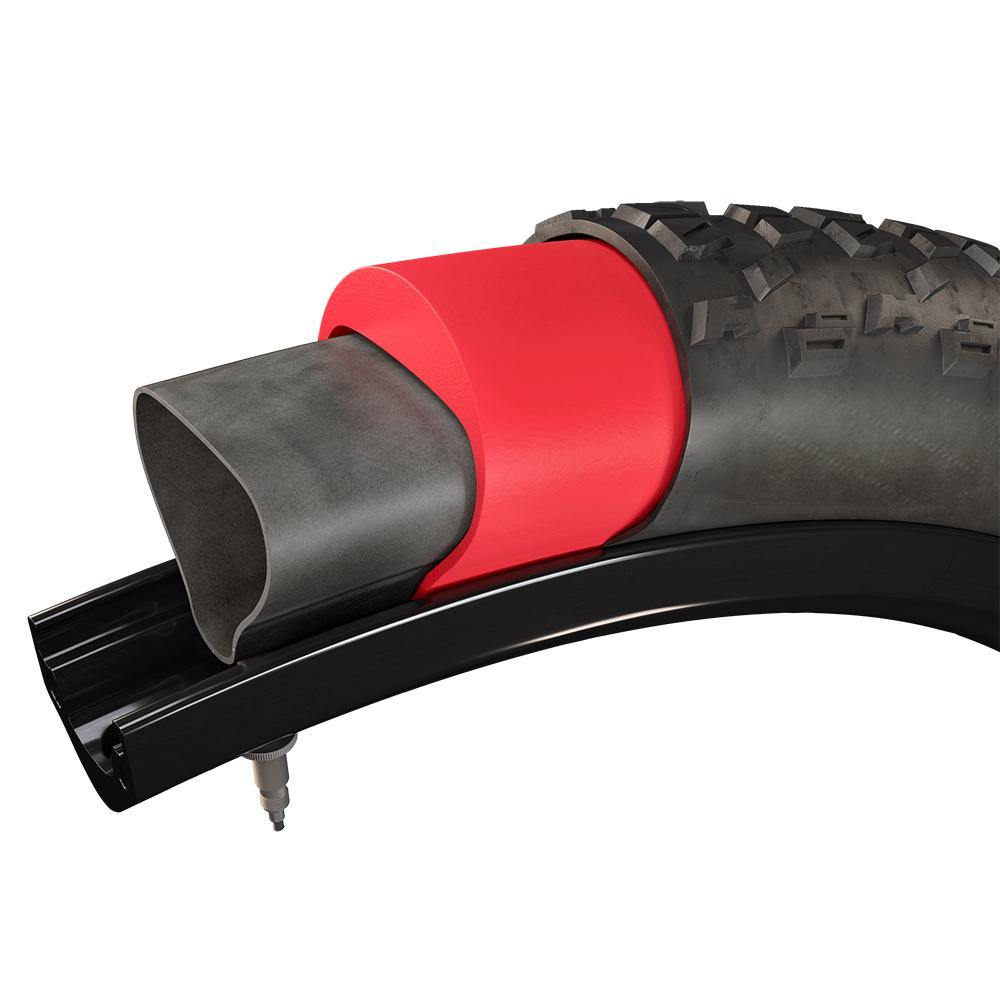

ARMOUR HELPS YOUR RIDE

Armour improves every level of your ride, from rim to tire.
TIRE
Armour provides additional sidewall support to your tire on hard turns. It also works with your tire to provide run-flat capability on regular tire sizes (Excludes fat tire sizes).

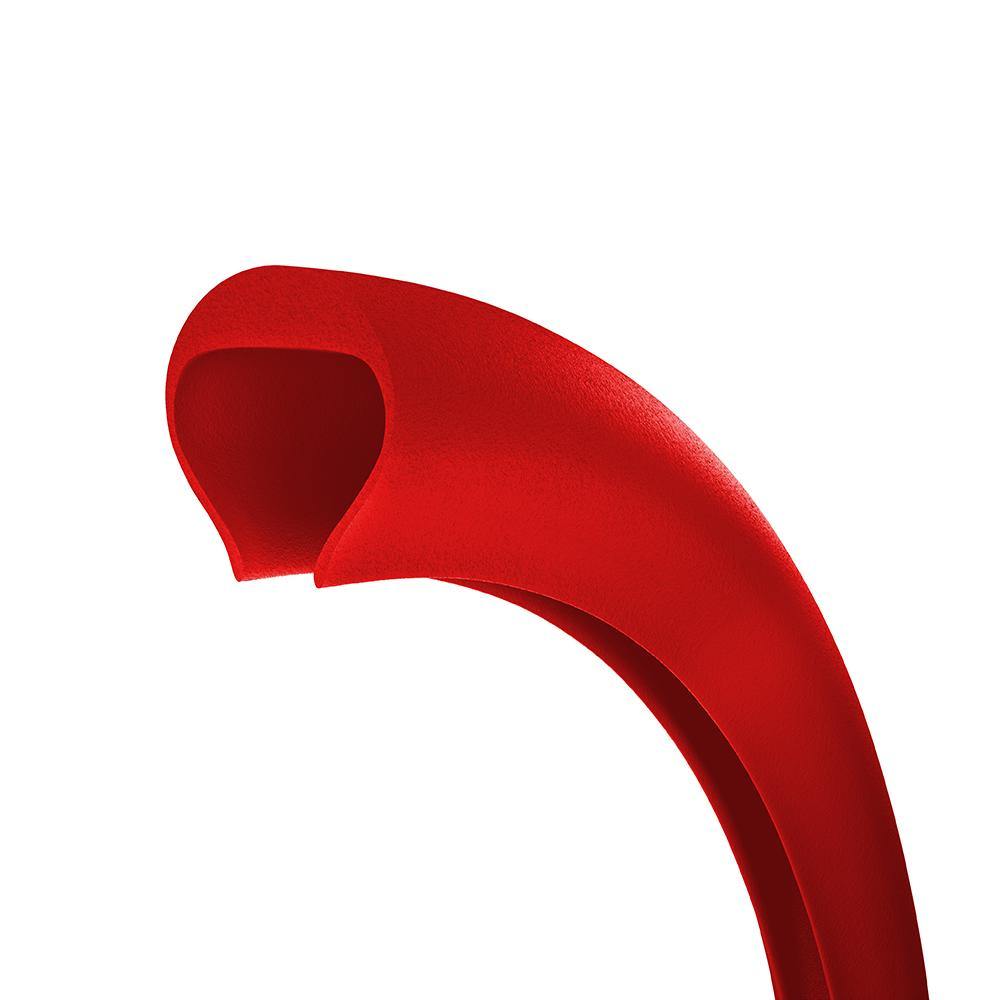

ARMOUR INSERT

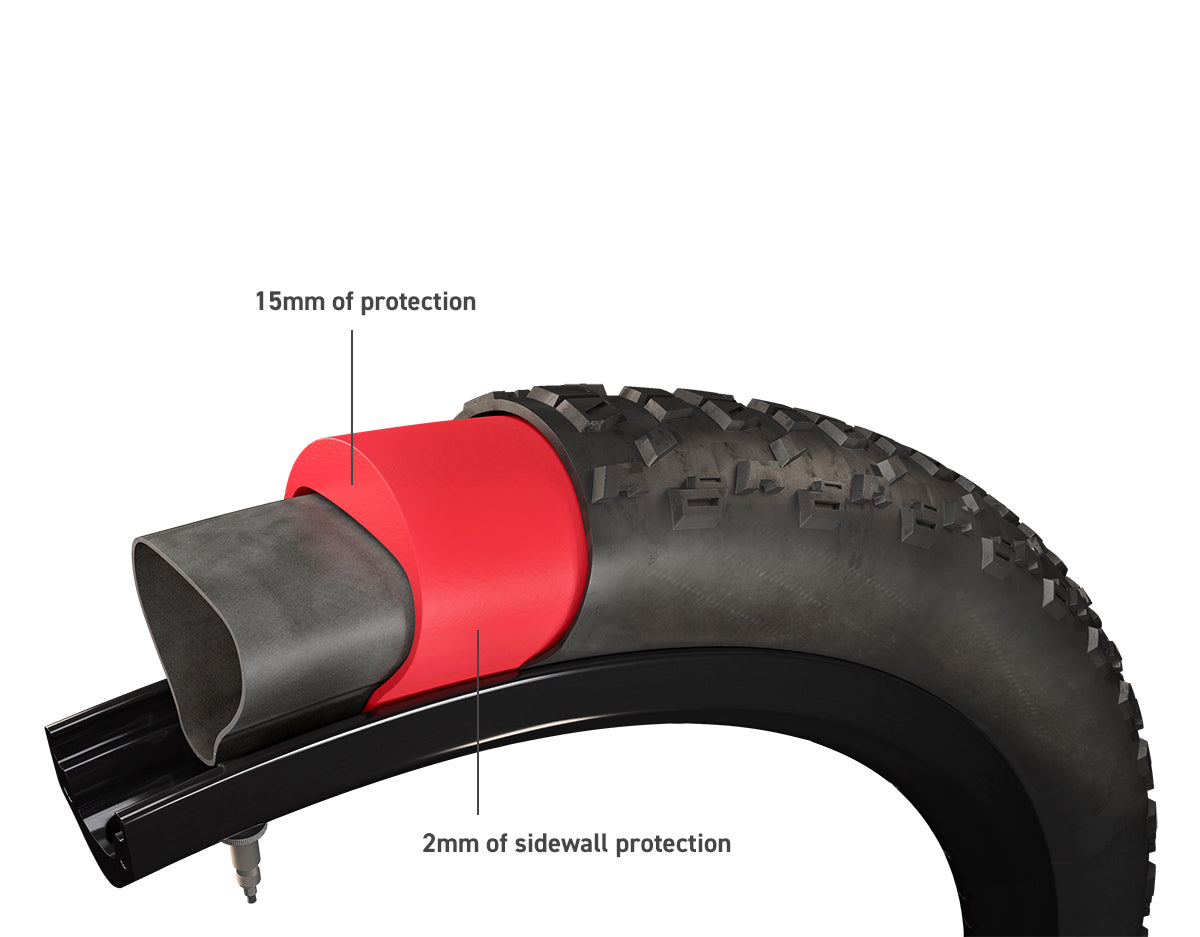

Armour protects with up to 15mm at it's thickest point. It wraps nearly 360° around your tube.
TUBE
With Armour protecting your tube, you can run at lower PSI and increase your traction and handling or something like that.
RIM

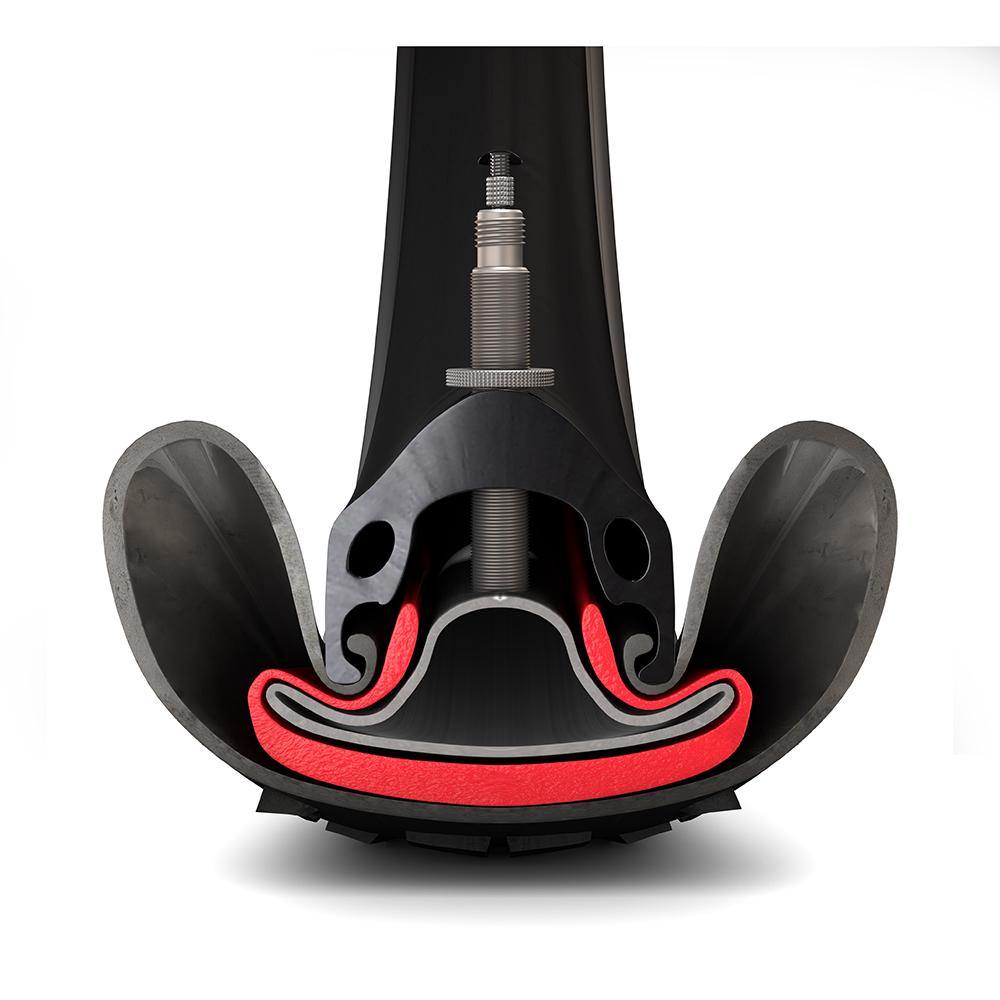

Even your rim is protected with Tannus Armour. It will provide cushioning to the hard hits and protect against pinch-flats.
Responsive Layout

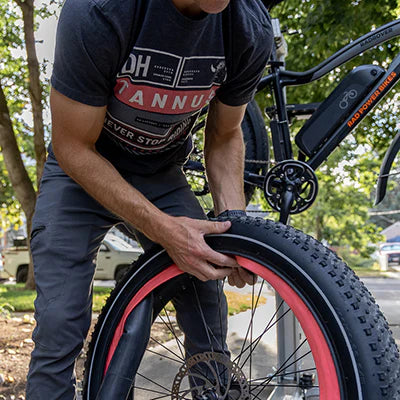

HOW TO INSTALL TANNUS ARMOUR

  • Inflate Tube Slightly
  • Install Tube Into Armour Insert
  • Spritz Inside Of Tire With Soapy Water For Easier Install
  • Tuck the Armour Insert Under the Rim
  • Tuck The Tire Into The Bead
  • Massage The Whole Tire To Ensure Everything Is In Place
  • Inflate To Desired PSI
  • Enjoy The Ride

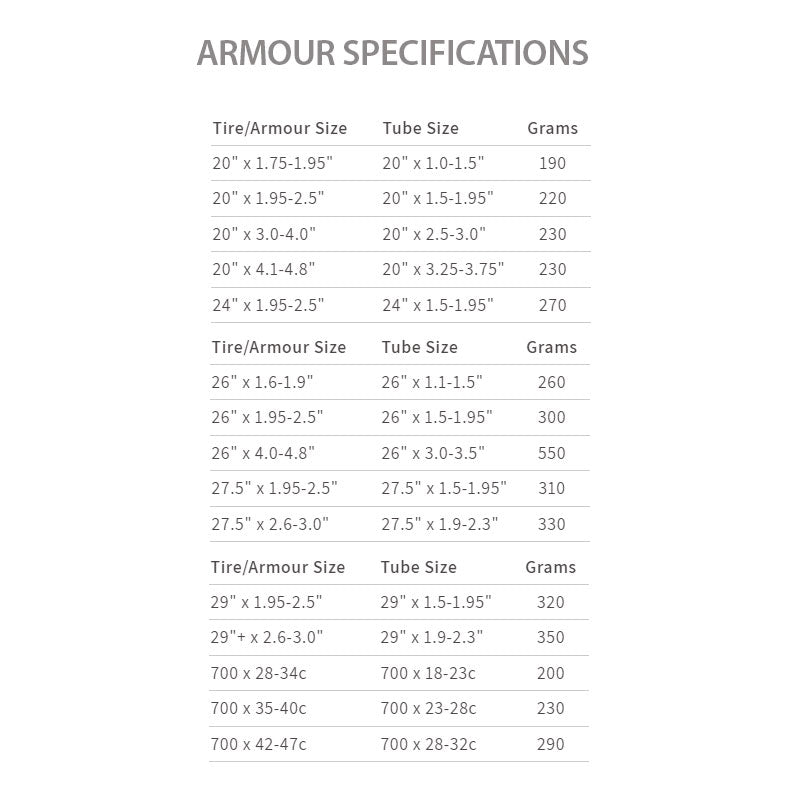

TANNUS ARMOUR SIZE SPECS
TIRE SIZE RANGE ARMOUR SIZE RECOMMENDED TUBE SIZE GRAMS
20 x 1.75 to 20 x 1.95 20 x 1.75-1.95 20 x 1.0 to 20 x 1.5 190
20 x 1.95 to 20 x 2.5 20 x 1.95-2.5 20 x 1.5 to 20 x 1.95 220
20 x 3.0 to 20 x 4.0 20 x 3.0-4.0 20 x 2.5 to 20 x 3.0 380
20 x 4.1 to 20 x 4.8 20 x 4.1-4.8 20 x 3.5 to 20 x 4.0 390
24 x 1.95 to 24 x 2.5 24 x 1.95-2.5 24 x 1.5-1.95 270
24 x 3.0 to 24 x 4.0 24 x 3.0-4.0 24 x 2.5 to 24 x 3.0 480
26 x 1.6 to 26 x 1.9 26 x 1.6-1.9 26 x 1.1 to 26 x 1.5 260
26 x 1.95 to 26 x 2.5 26 x 1.95-2.5 26 x 1.5 to 26 x 1.95 300
26 x 2.6 to 26 x 3.0 26 x 2.6-3.0 26 x 1.9 to 26 x 2.3 330
26 x 4.0 to 26 x 4.8 26 x 4.0-4.8 26 x 3.0 to 26 x 4.0 550
27.5 x 1.95 to 27.5 x 2.5 27.5 x 1.95-2.5 27.5 x 1.5 to 27.5 x 1.95 310
27.5 x 2.6 to 27.5 x 3.0 27.5 x 2.6-3.0 27.5 x 1.9 to 27.5 x 2.3 330
29 x 1.95 to 29 x 2.5 29 x 1.95-2.5 29 x 1.5 to 29 x 1.95 320
29+ x 2.6 to 29+ x 3.0 29+ x 2.6-3.0 29 x 1.9 to 29 x 2.3 350
700 x 28 to 700 x 34 700 x 28-34 700 x 18 to 700 x 23 230
700 x 35 to 700 x 40 700 x 35-40 700 x 23 to 700 x 28 230
700 x 42 to 700 x 47 700 x 42-47 700 x 28 to 700 x 32 290

Frequently asked questions

WHAT PSI SHOULD I RUN?

Tire pressure is a personal preference depending on size of the rider and riding conditions. However, adding Tannus Armour does allow you to run lower pressure which gives better control, and comfort.

We recommend starting 5psi lower than what you normally ride and adjusting your psi up or down from there based on the ride feel you enjoy.

Fat-tired e-bikes shouldn't run too low (under 10psi) as this may not offer enough support or give the comfort you're accustomed to.

E-BIKES can run at normal tire PSI.

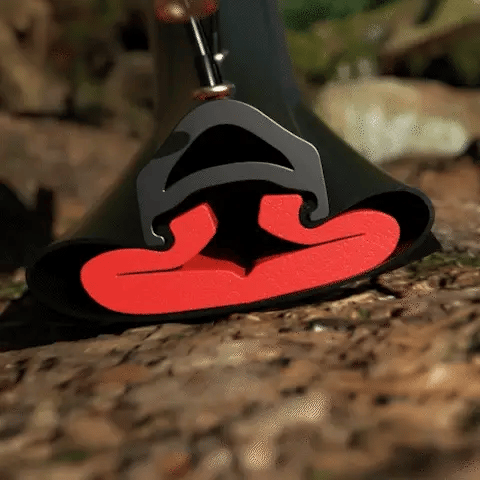

CAN I RIDE FLAT ON TANNUS ARMOUR?

One of the great features of the Tannus Armour is that if you get a flat during the ride you can ride a few miles without hurting your rim.* However, if you do get a flat please avoid rougher terrain.

*Does not apply to the following sizes: 20x3.0-4.0, 20x4.1-4.8, and 26x4.0-4.8.
HOW DO I INSTALL TANNUS ARMOUR?

Here is all the information you need to install Tannus Armour. VIEW INSTALLATION INFO
